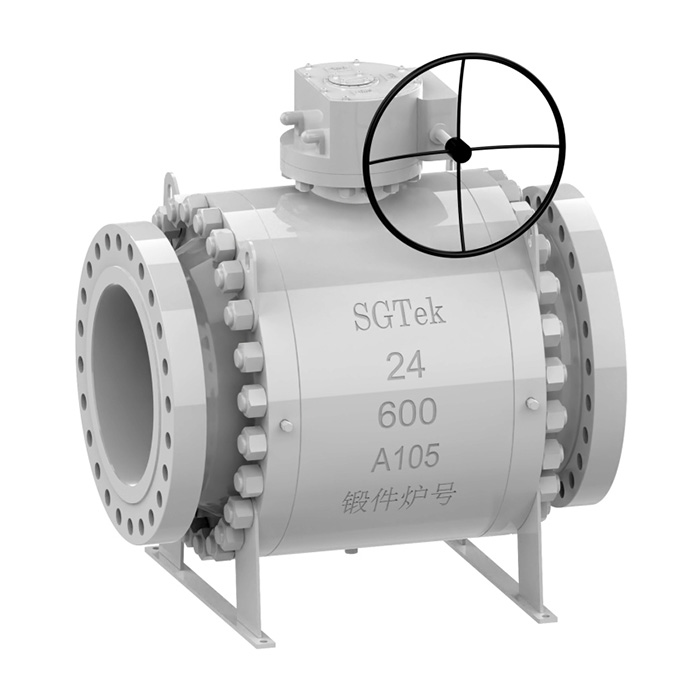

Forged Steel Trunnion Mounted Ball Valve

This series of ball valves features a trunnion mounted ball and a forged body design. Characterized by dense material, excellent mechanical properties, and high pressure-bearing capacity, they are suitable for high-pressure, severe service pipeline systems in the petroleum, natural gas, and chemical industries.

Download Contact Us

Structural Characteristics

Multiple Stem Sealing

Thrust washer + O-ring + graphite packing Graphite packing can be replaced under pressure. Fire-safe, leak-proof performance.
01
Anti-Static Design

Anti-static ball and spring to discharge static electricity.
02
Trunnion Mounted Design

Trunnion mounted ball, floating seats.Bearing-supported stem to reduce torque, spring + line pressure energized sealing.
03
Multiple Seat Options

DBB/DIB seat options, zero-pressure/fullpressure differential sealing, low-torque design.
04
Fire-safe Seat Design

After the soft seal is destroyed by fire, a spring pushes the seat ring to form a metal-to-metal seal.
05
Actuator Options

Pneumatic / Electric / Hydraulic / Gasover-Oil / Electro-hydraulic
06
Separate ball and stem design

Reduces the effect of medium pressure to lower operating torque.
07
Anti-Blowout Stem Design

Stem shoulder design prevents blowout under pressure
08
Emergency Sealant Injection System

Located in the seat and stem sealing areas for rapid seal recovery and easy periodic cleaning.
09
Trunnion Shaft / Plate Structure

The ball is centrally supported by a trunnion plate structure that absorbs forces from the line pressure, leaving the stem to only bear the operating torque.
10
Double External Valve Sealing

O-ring primary seal, with a fire-safe ring providing an emergency seal in case of fire.
11

Main Technical Parameters

Nominal Diameter	DN50-DN800 \| 2"-32"
Design Pressure	PN16-PN420 \| CLASS150-CLASS2500
Medium Temperature	-29℃~+121℃
Working Medium	天然⽓、油品、⽔等
Valve Construction	两⽚式、三⽚式
Design & Manufacturing Standards	API 6D、API 608、ASME B16.34、GB/T 12237、GB/T 19672
Flange Connection	ASME B16.5、GB/T 9113、HG/T 20592-20635
Face-to-Face Dimension	API 6D、ASME B16.10、GB/T 12221、GB/T 19672
