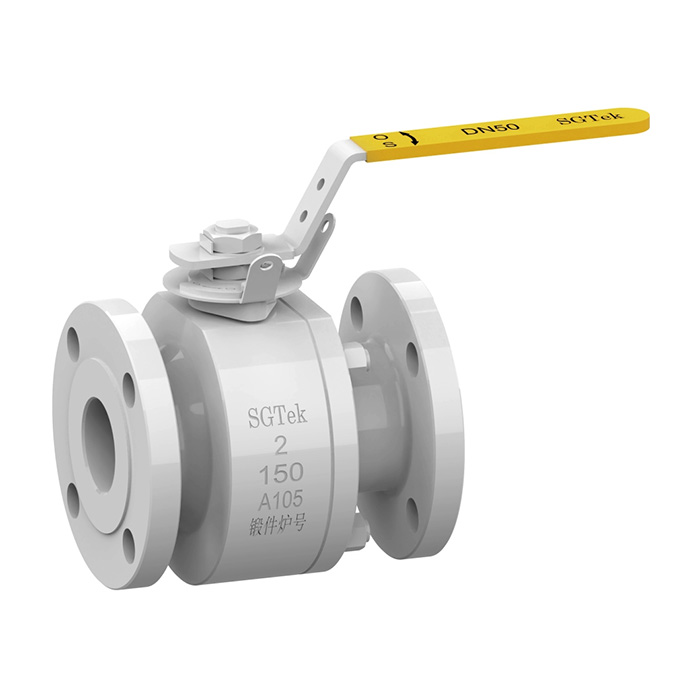

Forged Steel Floating Ball Valve

This series of ball valves features a floating ball and a forged body design. The dense material and excellent mechanical properties make them suitable for fluid transmission pipeline systems in the petroleum, natural gas, and chemical industries.

Download Contact Us

Structural Characteristics

Anti-misoperation Handle

Double-D design aligns with flow direction, providing clear visual indication of valve open/close status.
01
Anti-rotation Washer

Anti-loosening fastener
02
Multiple Stem Sealing

Thrust washer + O-ring + graphite packing for fire-safe, leak-proof performance
03
Spiral Wound Gaskets Used throughout the Series

True fire-safe sealing design
04
90° open/close positioner plate

05
Handle Locking Mechanism

Lockable in fully open and fully closed positions to prevent misoperation.
06
Anti-Static Design

Anti-static ball and spring to discharge static electricity
07
Anti-Blowout Stem Design

Stem shoulder design prevents blowout under pressure.
08
Fire-safe Construction

After the seat is destroyed by fire, the medium pressure pushes the ball against the downstream metal sealing surface, forming a metal-to-metal seal.
09

Main Technical Parameters

Nominal Diameter	DN25-DN200｜1"-8"
Design Pressure	PN16-PN100 \| CLASS150-CLASS600
Medium Temperature	-29℃~+121℃
Working Medium	Natural gas, oil products, water, etc.
Valve Construction	Two-piece, three-piece
Design & Manufacturing Standards	API 6D、API 608、ASME B16.34、GB/T 12237
Flange Connection	ASME B16.5、GB/T 9113、HG/T 20592-20635
Face-to-Face Dimension	API 6D、ASME B16.10、GB/T 12221
