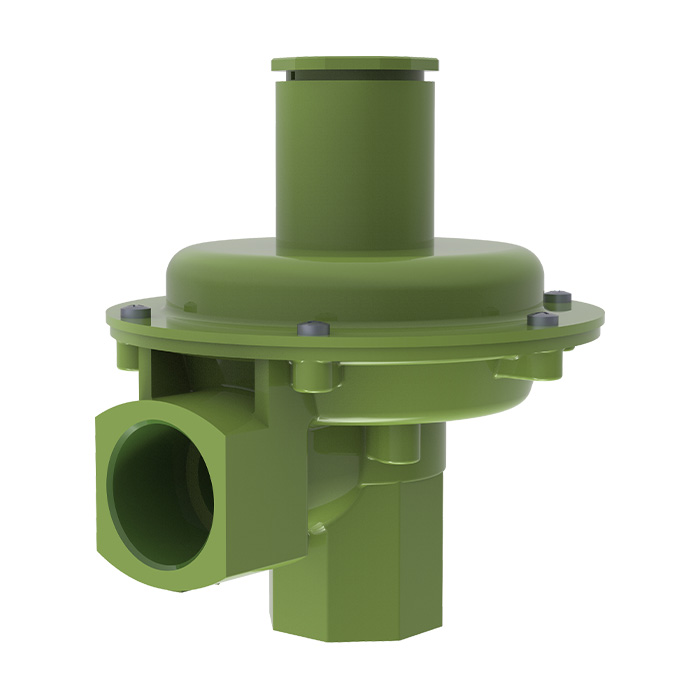

RV Series Relief Valve
RV Series Relief Valve
Protects pressure vessels, process units, and pipelines from overpressure conditions, ensuring operational safety and continuity.
Structural Characteristics
-
Features simple pressure structureReliable performance, positive reseating, and simplified relief setting.01
-
Suitable for natural gas, LPG, air, and other gases.02
-
. Return pressure: ≥ 0.9 Ps.03
Main Technical Parameters
Model | RV 25L |
Maximum Inlet Pressure(MPa) | 0.5 |
Relief Range | 2-350 kPa |
Connection Size | Rp1 |
Accuracy Class | AF1 |
Working Temperature Range | -20 - 60℃ |
