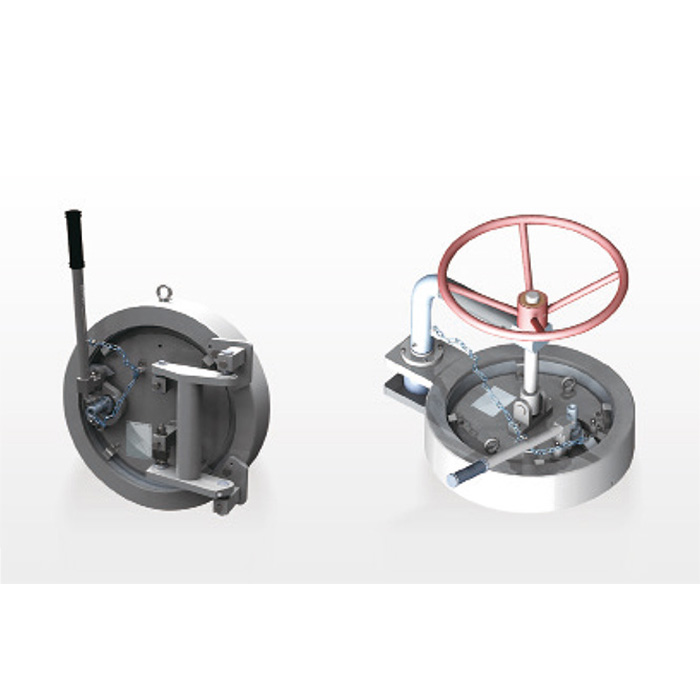

Locking ring type quick opening blind plate
Quick-opening blind plates are widely used as pressure components in pressure vessels, pressure pipelines, and related equipment, enabling rapid opening for maintenance, internal component replacement, and repairs. In the natural gas industry, they are commonly applied to devices requiring intermittent operation, such as gas filters, gas filter separators, and pig launcher/receiver units. They can replace pressure vessel manholes, quick-opening doors for pigging systems, filter(separator) units, and vulcanizing tanks.
Structural Characteristics
  • TSG21-2016 "Code for Safety Engineering Supervision of Stationary Pressure Containers"
    01
  • GB 150.1-150.4-2011 "Pressure Vessel"
    02
  • JB4732-1995 "Steel Pressure Vessels-Design by Analysis"
    03
  • Manufacturer's Standard
    04
  • Good sealing performance(
    05
  • Flexible operation
    06
  • Integral structure, safe and reliable
    07
  • Compact structure, small size, easy installation
    08
  • Equipped with safety interlocking device
    09
Main Technical Parameters
Applicable MediumLow-sulfur natural gas, manufactured gas, liquefied petroleum gas (LPG) and other non-corrosive gases
Design Temperature-40℃-80℃
Pressure RatingCass150、Class300、Class600、Class900
Nominal DiameterDN300-DN1200
Main MaterialsNeck Flange:A105 / A350 / 16Mn Ⅲ;Cover:A105 / A350 / 16Mn Ⅲ
Sealing RingFluororubber (FKM) / Nitrile Rubber (NBR)
